LVM Configuration in Ubuntu 8.10

Set filesystems and mount points for logical volumes

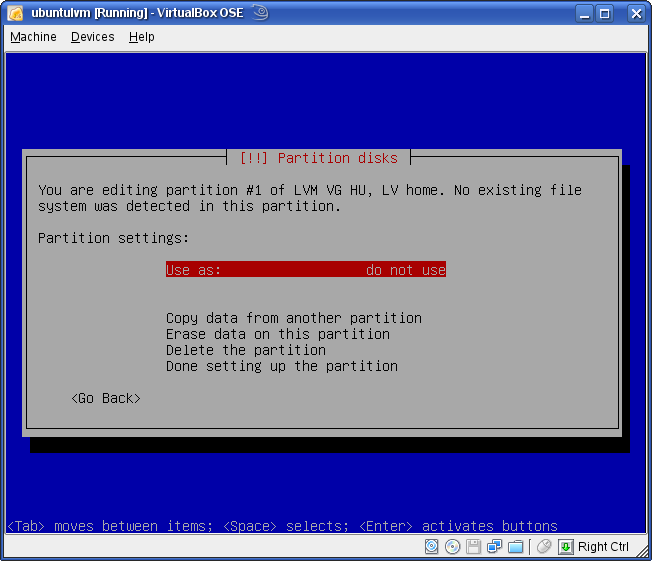

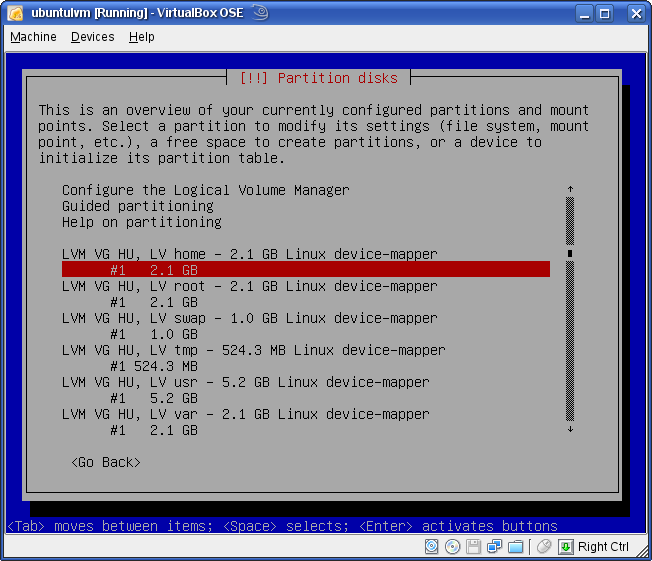

The screenshot below is the window you’ll see when you selected “Finish” from the last step. To start configuring the LVs (we start with the LV named home), select the option as shown. Enter.

Make the selection as shown. Enter.

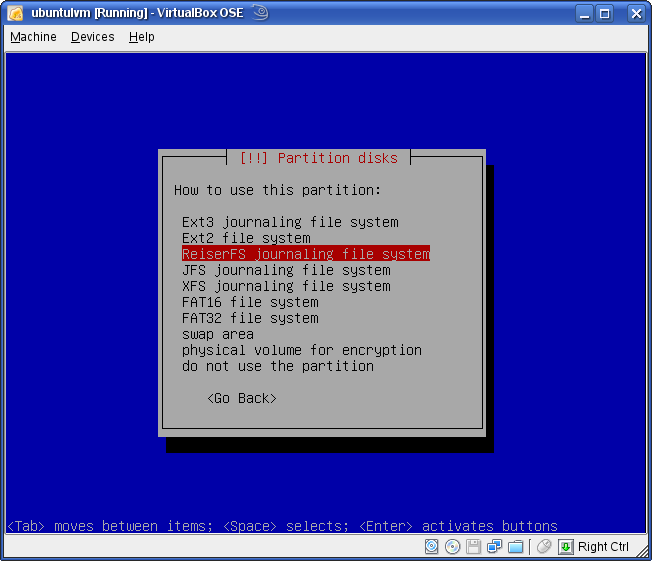

The “alternate-text” installer of Ubuntu supports all four journaling filesystems – Ext3, Reiserfs, XFS, and JFS. Ext3 is usually the default, but using Ext3 requires that an LV be un-mounted before it can be resized. Reiserfs and XFS makes no such requirement. To save us one more task when it comes time to manage LVs, let’s choose Reiserfs. Enter.

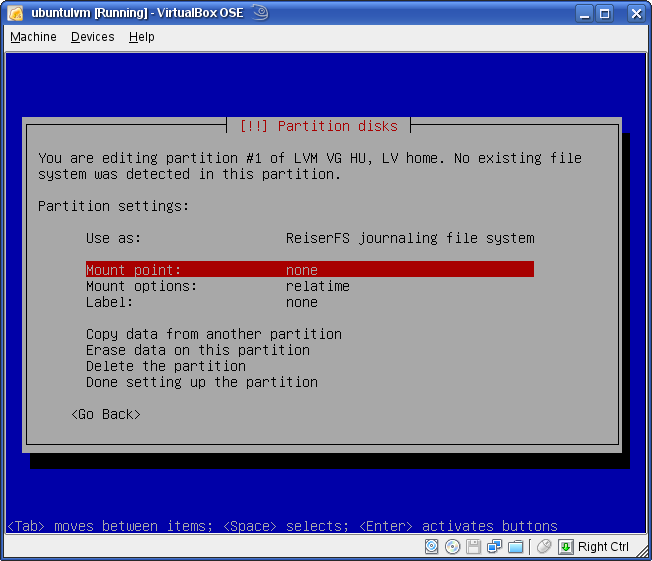

With the file system set, time to set the mount point. Select the option as shown. Enter.

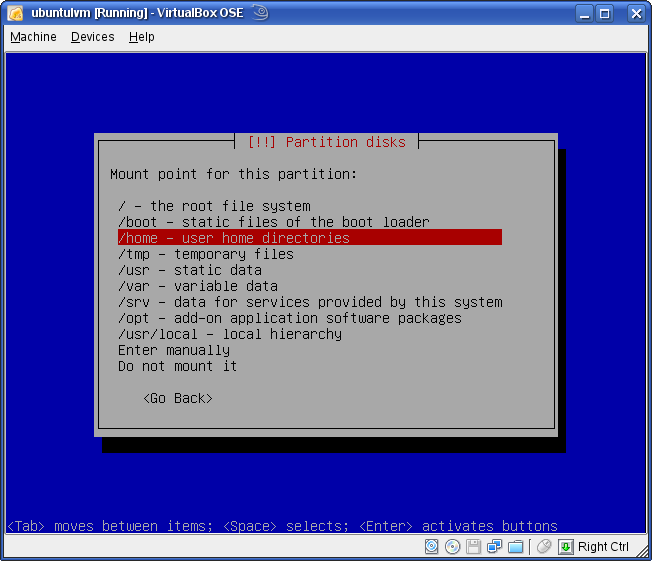

Since we are dealing with the LV named home, set the mount point to /home. Enter.

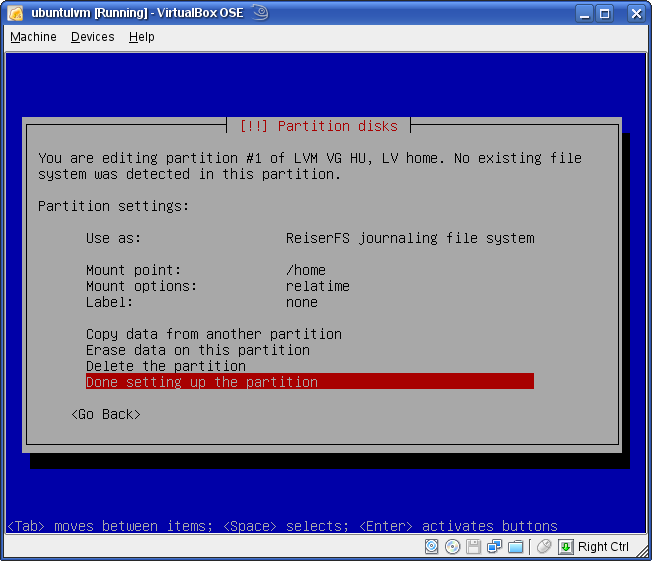

Survey your work and make sure all is right. Select the option as shown. Enter.

Repeat the last six steps (last six screenshots) for the other logical volumes that you created. For this tutorial, here’s what we would choose for the other LVs (the mount points in parenthesis):

  • root ( / )
  • usr (/usr)
  • var (/var)
  • tmp (/tmp)
  • swap (swap)

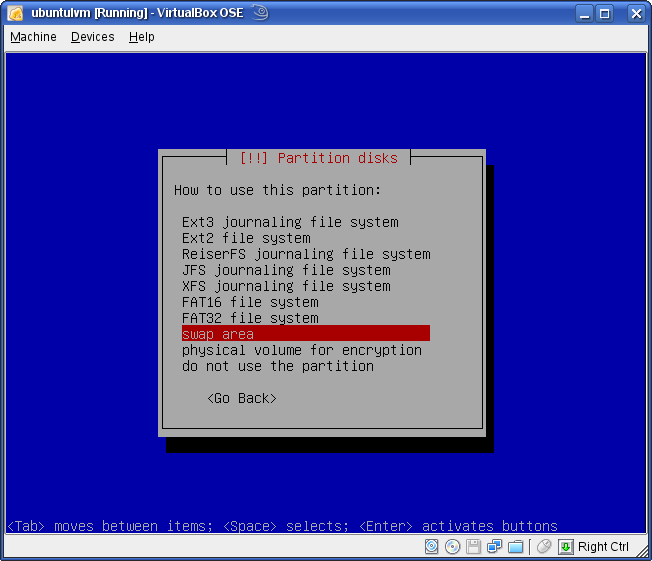

For swap, make sure to choose swap as the filesystem type as shown below

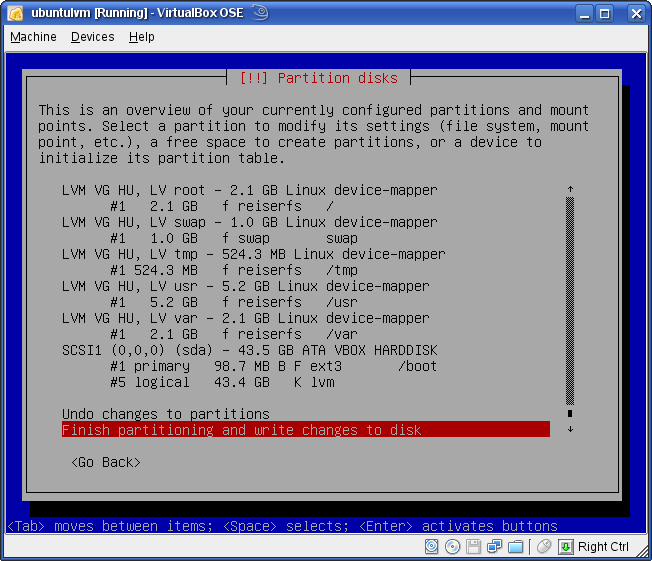

When all the logical volumes have their filesystems and mount points set, your window should look like the one below. Enter.

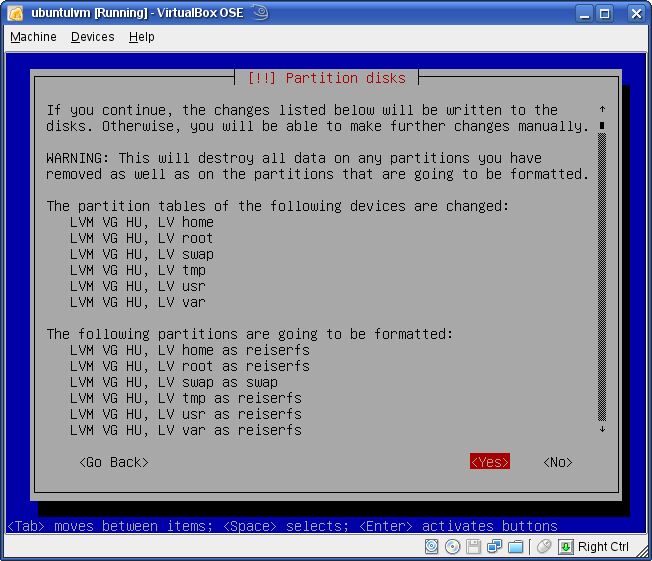

This is the final window you should see when you are done setting up LVM. Set the cursor to “Yes”, hit “Enter” on the keyboard, and continue with the rest of the installation.

The End!
