LVM Configuration in Ubuntu 8.10

Create Logical Volumes

With the PV and VG created, and the PV assigned to the VG. the next step is to create the Logical Volumes. A Logical Volume (LV) is LVM jargon for partition. Our goal in this tutorial is to create six LVs, one each for the following filesystem directories:

  • / (root)
  • swap
  • /home
  • /usr
  • /var
  • /tmp

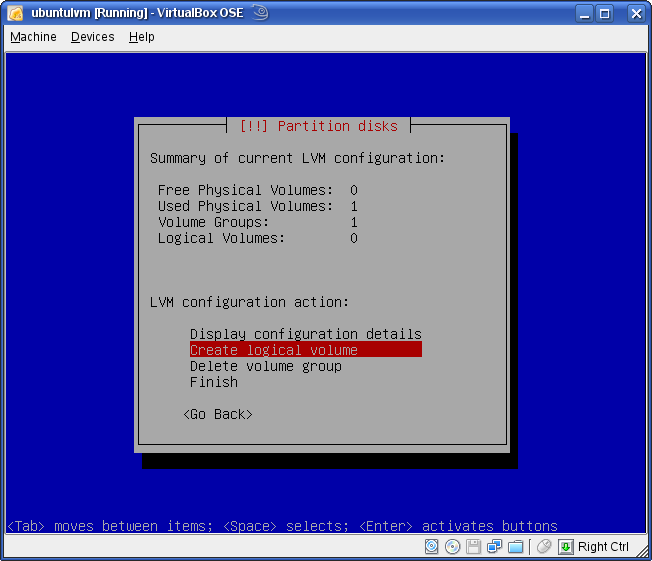

Observe that the upper part of the screenshot below reveals that we have created one PV which has been assigned to a VG, but there are zero LVs. Select the option to create logical volumes as shown. Enter.

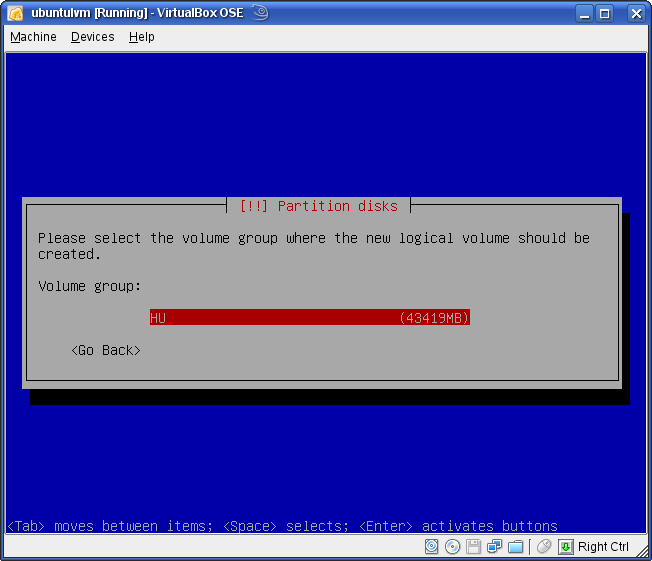

We have to tell the installer what VG to create the LVs under. Since we created only one VG, that is the only one shown. Enter.

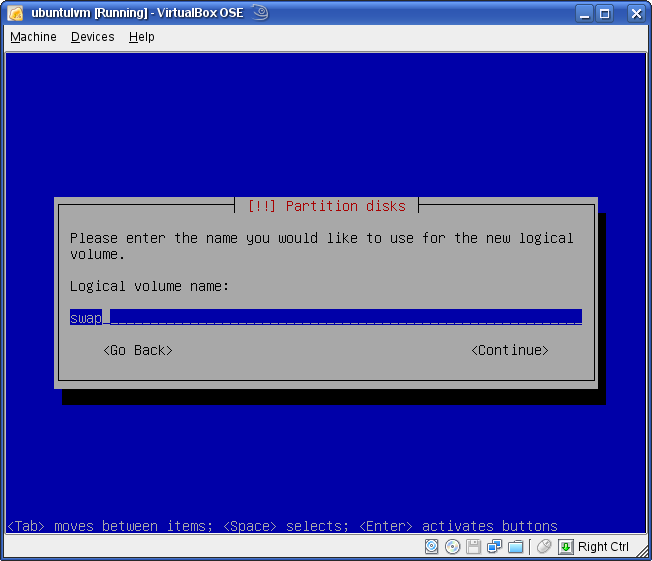

Let’s start by creating the logical volume for swap. Enter.

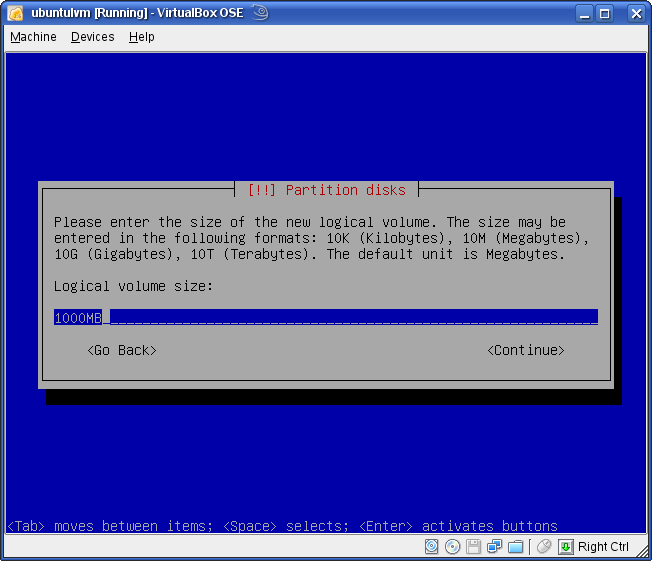

And assign it 1000 MB. Note that most distributions assign this amount of space to the swap partition, whether using LVM or not.

Repeat the last two screenshot for the following logical volumes. Suggested sizes in parenthesis:

  • root (2000 MB)
  • usr (3000 MB)
  • var (1000 MB)
  • tmp (500 MB)
  • home (3000 MB)

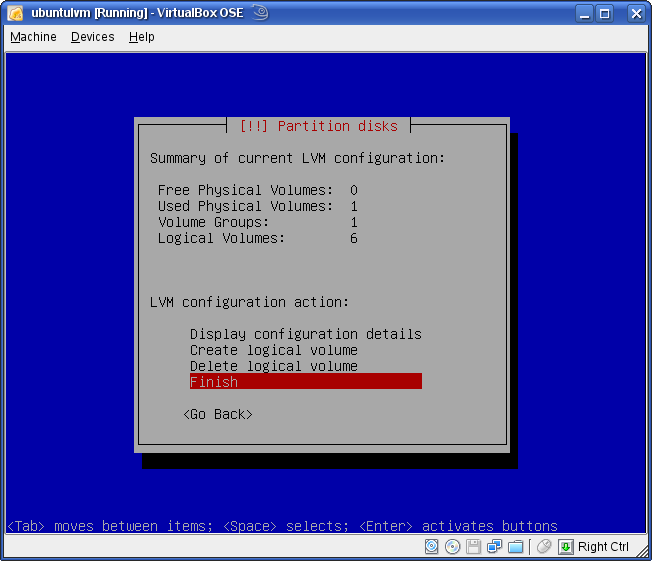

The suggested sizes should be more than enough to install and get the system up and running. This leaves enough free space to grow any LV that needs it. When completed, your window should look like the one below. Notice that instead of zero LVs, we now have six. To preview your work, highlight the option as shown. Enter.

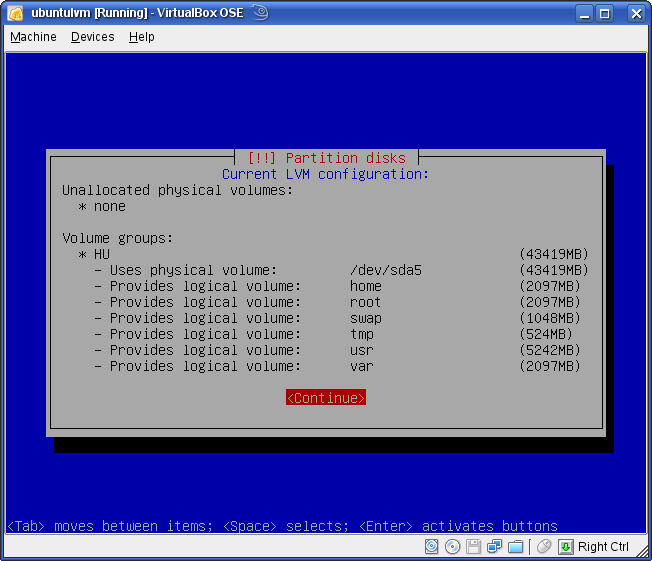

You should now see the details of your work so far. Notice that the VG (in this case HU), the PV (/dev/sda5), and the six LVs. Enter.

Select the option as shown. Enter.

Now that we have created a PV, a VG, assigned the PV to the VG, and created six LVs, the final task is to assign a filesystem and a mount point to each LV.
