LVM Configuration in Ubuntu 8.10

Create a Volume Group (VG)

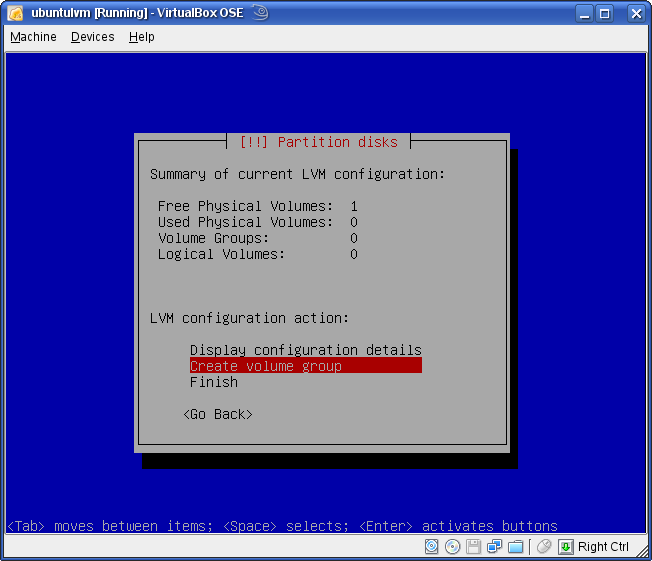

With the changes we have made so far written to disk, the next step is to create a Volume Group (VG). Select the option to create a VG as shown in the screenshot below. Enter

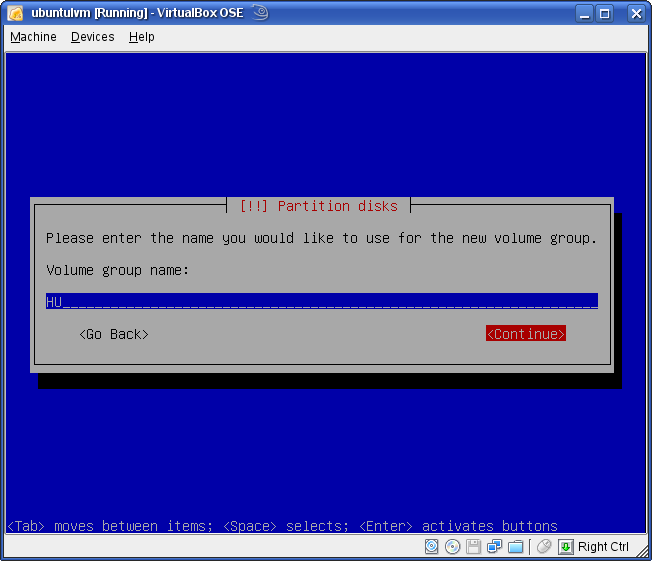

Creating a VG starts with giving it a name. Any name will do. Enter.

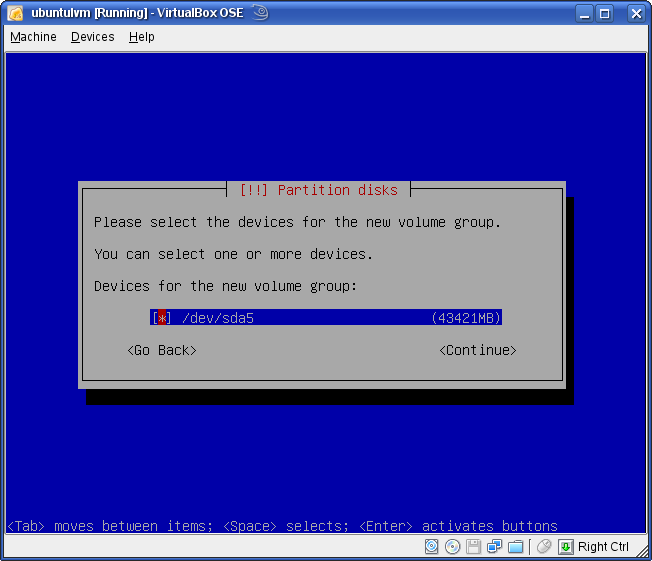

With the VG named, the next step is to assign the PV we created earlier to the VG. By default, this is not selected. Use the space bar on the keyboard to select the partition representing the PV. Enter.

That’s it for creating a VG. Next step is to create the logical volumes.
